| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| MIB support | RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737 |
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP, SFP+ |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| MAC address table | 16384 entries |
| Switching capacity | 168 Gbit/s |
| Forwarding rate | 125 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 2 MB |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 512 |
| Access Control List (ACL) ingress | 2048 |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SNMPv3, SSH-2, SSL/TLS |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Queue scheduling algorithms | Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast support | Yes |
| Routing protocols | RIP |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Certification | FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Noise level | 52.3 dB |
| Mean time between failures (MTBF) | 400490 h |
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 65.01 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 221.8 BTU/h |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
| Description |

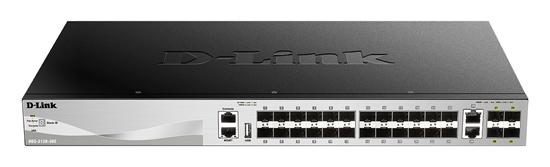

| D-Link DGS-3130-30S/E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 2, USB 2.0 ports quantity: 1. MAC address table: 16384 entries, Switching capacity: 168 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: AC-in jack |
