    Manufacturer: LEVELONE

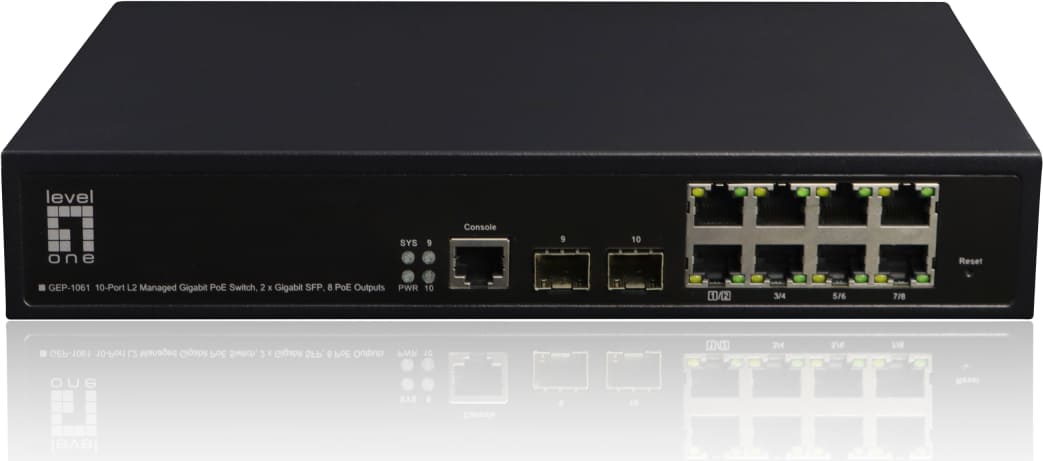

    LevelOne GEP-1061 KILBY 10-Port L2-Managed-Switch


    €286.88 incl tax

    SKU: ST07368525
    Manufacturer part number: GEP-1061
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    WRL stadarti 802.11b
    RJ-45 port 10
    Status7 dienas
    Description
    The GEP-1061 is LevelOne latest generation of 10-Port L2 Managed Gigabit PoE Switch, with 2 Gigabit SFP Uplink ports. also offers powerful Web Smart configuration for PoE management, and QoS / VLAN / MSTP / Multi-broadcast / ports management features. Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 20Gbps and bring Gigabit speeds all the way to your computers. The GEP-1061 PoE-enabled switches features an IEEE 802.3af/at/bt standard, better PoE functionality with 180W PoE power budget and usability. supports up to 2 ports at 90W, or 6 ports at 30W or 8 ports at 15.4W to meet the increasing power demands of users. giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

    Switch type Managed
    Switch layer L2
    Quality of Service (QoS) support Y
    Traffic classification Y
    System event log Y
    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Combo SFP ports quantity 2
    Fiber ports quantity 2
    Fiber optic connector SFP
    Console port RJ-45
    Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Port mirroring Y
    Flow control support Y
    Link aggregation Y
    Broadcast storm control Y
    Rate limiting Y
    Spanning tree protocol Y
    Cable length detection Y
    VLAN support Y
    Virtual LAN features MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN
    Number of VLANs 4000
    Fiber ethernet cabling technology 100BASE-X, 1000BASE-X
    MAC address table 8000 entries
    Switching capacity 20 Gbit/s
    Forwarding rate 14.9 Mpps
    Store-and-forward Y
    Number of trunks 8
    Number of queues 8
    Static route Y
    Jumbo frames support Y
    Jumbo frames 10000
    Packet buffer memory 4.1 MB
    DHCP features DHCP client, DHCP snooping
    Access Control List (ACL) Y
    Access Control List (ACL) rules 512
    IGMP snooping Y
    MAC address filtering Y
    SSH/SSL support Y
    BPDU filtering/protection Y
    Password protection Y
    DoS attack prevention Y
    Multicast support Y
    IPv4 & IPv6 features IPv6 Telnet, IPv6 ping, IPv6 tracert
    Rack mounting Y
    Stackable N
    Product colour Black
    Reset button Y
    LED indicators Activity, Link, Power
    Country of origin China
    Certification CE class A, FCC, UL, VCCI, BSMI
    Internal memory 32 MB
    Telnet Y
    Power source AC
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (typical) 80 W
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 8
    Power over Ethernet (PoE) power per port 30 W
    Total Power over Ethernet (PoE) budget 125 W
    Operating temperature (T-T) -10 - 50 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 10 - 95%
    Width 181 mm
    Depth 270 mm
    Height 44 mm
    Weight 800 g
    Cables included AC, LAN (RJ-45)
    Quick start guide Y
    Package type Blister
    Rack mount kit Y
    Resource CD Y
    Package width 255 mm
    Package depth 82 mm
    Package height 345 mm
    Package weight 2 kg
    Harmonized System (HS) code 85176990
