Manufacturer: TELTONIKA

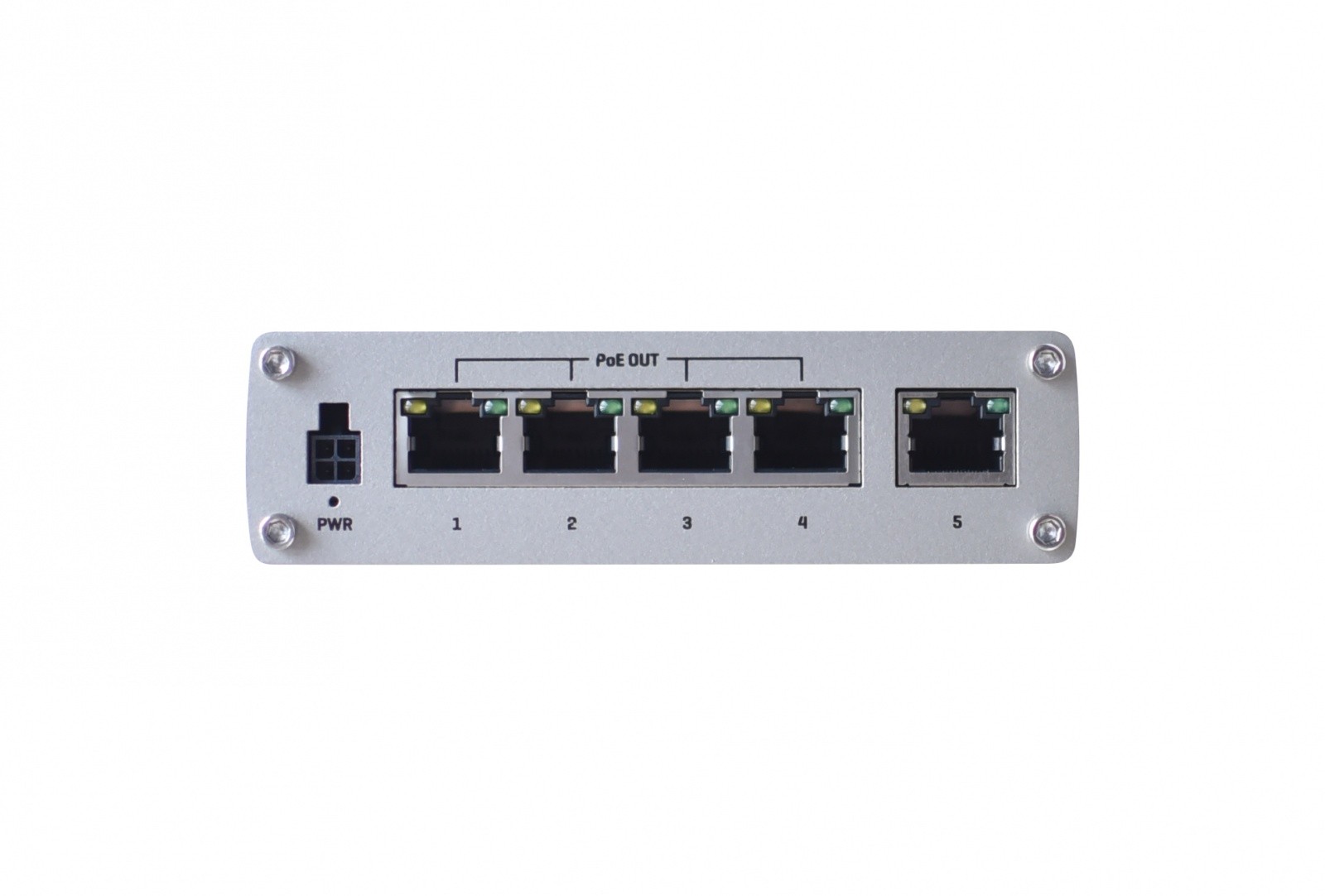

TELTONIKA NETWORKS TSW100 Industrial PoE

€74.78 incl tax

SKU: ST04642708

Manufacturer part number: TSW100000000

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
PL	9 - 12 days	3	€74.78 incl tax
LT	3 - 5 days	20	€77.63 incl tax
DE	5 - 10 days	4	€81.17 incl tax
LT	5 - 15 days	5	€90.37 incl tax
DE	5 - 15 days	40	€92.61 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

RJ-45 port	5
RJ-45 port	4

Switch class	Unmanaged
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	5
Number of PoE ports (PoE & PoE+)	4
Console port	No
Throughput	10 (Gigabity na sek.)
Packet buffer	128 (Kilobajt)
MAC address table size	2000
Support for Jumbo frames	No
Stackability	No
QoS	IEEE 802.3 IEEE 802.3u IEEE 802.3az IEEE 802.3af IEEE 802.3at
Chassis type	Rack
Chassis type	Desktop
Fan	No
Power supply	External
Power consumption	129 (Watt)
Environment requirements	Temperatura pracy: -40°C do +75°C Wilgotność podczas pracy: od 10% do 90% bez kondensacji
Accessories included	TSW100 Zasilacz 62 W Skrócona instrukcja obsługi QSG
Power supply	Gniazdo 4-pinowe, 7-58 VDC
Dimensions	115 x 32 x 95 mm
Weight	340 (gram)
Other features	Całkowity budżet PoE: 120 W
Width	150
Height	175
Depth	70
Weight	739
Description
Description	TSW 100 TSW100 to bardzo popularny, pierwszy przemysłowy, przełącznik niezarządzalny firmy Teltonika Networks. Wyposażony jest on w pięć portów Gigabit Ethernet, z których cztery obsługują standardy IEEE802.3af i IEEE802.3at Power-over-Ethernet (PoE). Umożliwia centralizację zasilania, zapewniając do 30 watów na port, zmniejszając wysiłek związany z instalacją zasilania. Idealny do profesjonalnych zastosowań o wysokiej przepustowości, aby zapewnić zarówno niezawodne połączenie danych, jak i zasilanie.

Description	TELTONIKA IOT SWITCH TSW100 POE
CountryofOrigin	CHINA
TariffHeading	84733080
PictureLocation	https://www2.f9baltic.com/productimages/big/Tsw100_hd_1.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/Tsw100_hd_1.jpg
AdditionalPictures	TSW100000000_4.jpg TSW100000000_3.jpg TSW100000000_2.jpg
Weight	0.770000
Height	75.000000
Length	170.000000
Width	150.000000
BoxSize	0
PalletSize	0
MAC address table, entries	2K
Ports quantity	5
Ethernet LAN (RJ-45) PoE ports quantity	4
Weight, g	350
Dimensions W x D x H, mm	115 x 95 x 32
IP classification	IP30
PoE capasity per port W	30
Power over Ethernet (PoE), W	120
Bandwidth, Gbit/s	10
Power over Ethernet (PoE) Support	Yes
Networking standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Switch type	Unmanaged
Jumbo Frames support	9216 bytes
Operating temperature range (T-T), �C	- 40 - 75
Auto MDI/MDI-X	Yes
Ethernet LAN data transfer rates, Mbit/s	10/100/1000
Description
Description	TSW100 industrial unmanaged POE+ SWITCH TSW100 is the first industrial unmanaged switch from Teltonika Networks. Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.

Description	TELTONIKA NETWORKS TSW100 Industrial PoE
VatType	VAT
Weight	0.790000000
Height	75.000000000
Width	150.000000000
Length	175.000000000
Description
Description	TELTONIKA NETWORKS TSW100 Industrial Unmanaged PoE/Switch

Description	TELTONIKA NETWORKS TSW100 Industrial PoE
VatType	VAT
Weight	0.790000000
Height	75.000000000
Width	150.000000000
Length	175.000000000
Description
Description	TELTONIKA NETWORKS TSW100 Industrial Unmanaged PoE/Switch

Embeeded battery	No, No
WEEE tax	Yes, Yes
WEE classification	CL109:6:2017-04-01, CL109:6:2017-04-01
Packing quantity	1, 1
Gross weight	0.783, 0.783
Gross depth (mm)	75, 75
Gross width (mm)	175, 175
Gross height (mm)	150, 150
Volume (m3)	0.00196875, 0.00196875
Net weight	0.583
Tare weight (kg)	0.2, 0.2
Paper/Pasteboard	200, 200
Plastic (No PET)	144.00, 144.00
Warranty	12
Producer product name	TSW100
Producer product family	Industiral POE+ Swith
POE	PoE 802.3 af and PoE 802.3 at
Predominant port type	10/100/1000 Mbps (RJ-45)
Gigabit Ethernet (copper) ports quantity	5
Switch type	Unmanaged
Form factor	Desktop
Power over Ethernet (PoE) ports quantity	4
Ethernet LAN (RJ-45) ports	5
Power over Ethernet (PoE)	Yes
PoE+ ports quantity	4
Case design	Full aluminum housing
Other features	Auto-uplink (auto MDI/MDI-X), rugged, total power budget at PSE up to 120 W
Power over Ethernet (PoE) power per port	30
Palette Qty	878, 878
Producer	Teltonika, Teltonika

Description
	5P Teltonika TSW100 Industrial GSwitch 4x PoE+ (120W)

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

RJ-45 port	5
RJ-45 port	4

Switch class	Unmanaged
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	5
Number of PoE ports (PoE & PoE+)	4
Console port	No
Throughput	10 (Gigabity na sek.)
Packet buffer	128 (Kilobajt)
MAC address table size	2000
Support for Jumbo frames	No
Stackability	No
QoS	IEEE 802.3 IEEE 802.3u IEEE 802.3az IEEE 802.3af IEEE 802.3at
Chassis type	Rack
Chassis type	Desktop
Fan	No
Power supply	External
Power consumption	129 (Watt)
Environment requirements	Temperatura pracy: -40°C do +75°C Wilgotność podczas pracy: od 10% do 90% bez kondensacji
Accessories included	TSW100 Zasilacz 62 W Skrócona instrukcja obsługi QSG
Power supply	Gniazdo 4-pinowe, 7-58 VDC
Dimensions	115 x 32 x 95 mm
Weight	340 (gram)
Other features	Całkowity budżet PoE: 120 W
Width	150
Height	175
Depth	70
Weight	739
Description
Description	TSW 100 TSW100 to bardzo popularny, pierwszy przemysłowy, przełącznik niezarządzalny firmy Teltonika Networks. Wyposażony jest on w pięć portów Gigabit Ethernet, z których cztery obsługują standardy IEEE802.3af i IEEE802.3at Power-over-Ethernet (PoE). Umożliwia centralizację zasilania, zapewniając do 30 watów na port, zmniejszając wysiłek związany z instalacją zasilania. Idealny do profesjonalnych zastosowań o wysokiej przepustowości, aby zapewnić zarówno niezawodne połączenie danych, jak i zasilanie.

Description	TELTONIKA IOT SWITCH TSW100 POE
CountryofOrigin	CHINA
TariffHeading	84733080
PictureLocation	https://www2.f9baltic.com/productimages/big/Tsw100_hd_1.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/Tsw100_hd_1.jpg
AdditionalPictures	TSW100000000_4.jpg TSW100000000_3.jpg TSW100000000_2.jpg
Weight	0.770000
Height	75.000000
Length	170.000000
Width	150.000000
BoxSize	0
PalletSize	0
MAC address table, entries	2K
Ports quantity	5
Ethernet LAN (RJ-45) PoE ports quantity	4
Weight, g	350
Dimensions W x D x H, mm	115 x 95 x 32
IP classification	IP30
PoE capasity per port W	30
Power over Ethernet (PoE), W	120
Bandwidth, Gbit/s	10
Power over Ethernet (PoE) Support	Yes
Networking standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Switch type	Unmanaged
Jumbo Frames support	9216 bytes
Operating temperature range (T-T), �C	- 40 - 75
Auto MDI/MDI-X	Yes
Ethernet LAN data transfer rates, Mbit/s	10/100/1000
Description
Description	TSW100 industrial unmanaged POE+ SWITCH TSW100 is the first industrial unmanaged switch from Teltonika Networks. Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.

Description	TELTONIKA NETWORKS TSW100 Industrial PoE
VatType	VAT
Weight	0.790000000
Height	75.000000000
Width	150.000000000
Length	175.000000000
Description
Description	TELTONIKA NETWORKS TSW100 Industrial Unmanaged PoE/Switch

Description	TELTONIKA NETWORKS TSW100 Industrial PoE
VatType	VAT
Weight	0.790000000
Height	75.000000000
Width	150.000000000
Length	175.000000000
Description
Description	TELTONIKA NETWORKS TSW100 Industrial Unmanaged PoE/Switch

Embeeded battery	No, No
WEEE tax	Yes, Yes
WEE classification	CL109:6:2017-04-01, CL109:6:2017-04-01
Packing quantity	1, 1
Gross weight	0.783, 0.783
Gross depth (mm)	75, 75
Gross width (mm)	175, 175
Gross height (mm)	150, 150
Volume (m3)	0.00196875, 0.00196875
Net weight	0.583
Tare weight (kg)	0.2, 0.2
Paper/Pasteboard	200, 200
Plastic (No PET)	144.00, 144.00
Warranty	12
Producer product name	TSW100
Producer product family	Industiral POE+ Swith
POE	PoE 802.3 af and PoE 802.3 at
Predominant port type	10/100/1000 Mbps (RJ-45)
Gigabit Ethernet (copper) ports quantity	5
Switch type	Unmanaged
Form factor	Desktop
Power over Ethernet (PoE) ports quantity	4
Ethernet LAN (RJ-45) ports	5
Power over Ethernet (PoE)	Yes
PoE+ ports quantity	4
Case design	Full aluminum housing
Other features	Auto-uplink (auto MDI/MDI-X), rugged, total power budget at PSE up to 120 W
Power over Ethernet (PoE) power per port	30
Palette Qty	878, 878
Producer	Teltonika, Teltonika

Description
	5P Teltonika TSW100 Industrial GSwitch 4x PoE+ (120W)
