Manufacturer: TELTONIKA

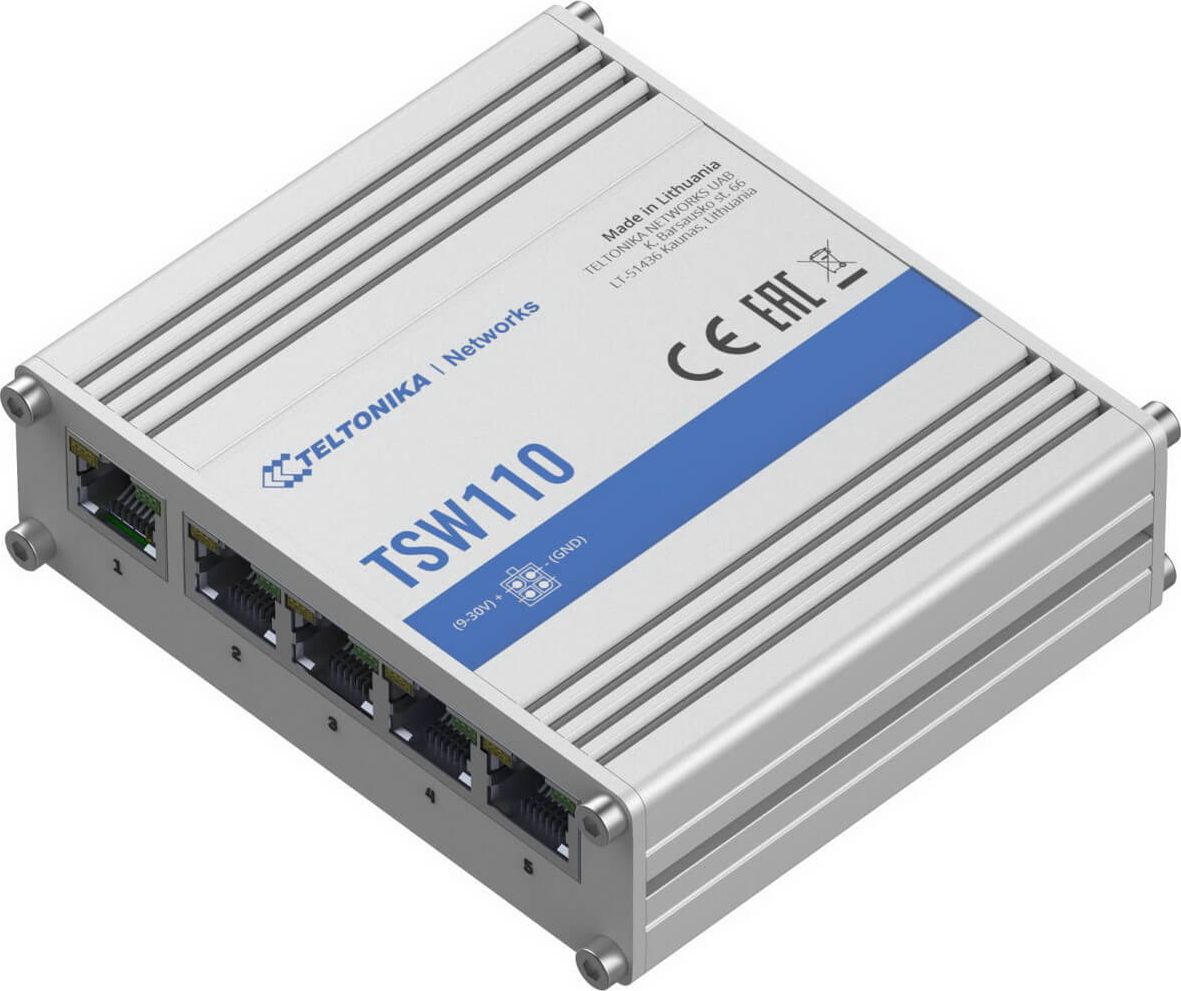

TELTONIKA NETWORKS TSW110 Industrial Unm

€49.82 incl tax

SKU: ST04852102

Manufacturer part number: TSW110000000

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
PL	8 - 15 days	7	€49.82 incl tax
LT	3 - 5 days	40	€54.03 incl tax
DE	5 - 10 days	5	€54.75 incl tax
DE	5 - 15 days	28	€62.16 incl tax
LT	5 - 15 days	5	€62.97 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

RJ-45 port	5
Properties	RJ-45

Switch class	Unmanaged
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	5
Console port	No
Throughput	10 (Gigabity na sek.)
Packet buffer	128 (Kilobajt)
MAC address table size	2000
Support for Jumbo frames	No
Stackability	No
Supported protocols and standards	IEEE 802.3 IEEE 802.3u IEEE 802.3az
Chassis type	Rack
Chassis type	Desktop
Fan	No
Power supply	External
Power consumption	1.8 (Watt)
Environment requirements	Temperatura robocza: -40°C do 75°C Wilgotność podczas pracy: od 10% do 90% bez kondensacji
Accessories included	TSW110 Zasilacz 9 W Skrócona instrukcja obsługi QSG
Power supply	Gniazdo 4-pinowe, 9-30 VDC
Dimensions	100 x 30 x 85 mm
Weight	227 (gram)
Width	150
Height	175
Depth	70
Weight	387
Description
Description	Przełącznik TSW110 TSW110 to niezarządzalny przełącznik warstwy 2, który jest uproszczoną wersją naszego wcześniejszego produktu - TSW100. Możliwość zasilania przez pierwszy port LAN. Posiada pięć portów Ethernet 10/100/1000 Mbps dla ekonomicznego rozwiązania o wysokiej przepustowości. Oferuje szeroki zakres obsługiwanych napięć zasilania (9-30 V). Idealny do profesjonalnych aplikacji o wysokiej przepustowości, zapewniający niezawodne połączenie danych.

Description	TELTONIKA IOT SWITCH TSW110
CountryofOrigin	CHINA
TariffHeading	85176200
PictureLocation	https://www2.f9baltic.com/productimages/big/TSW110000000.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/TSW110000000.jpg
AdditionalPictures	TSW110000000_5.jpg TSW110000000_4.jpg TSW110000000_3.jpg TSW110000000_2.jpg
Weight	0.400000
Height	150.000000
Length	150.000000
Width	170.000000
BoxSize	10
PalletSize	0
Ethernet LAN (RJ-45) ports quantity	5
Buffer size, KB	128
Ports quantity	5
MAC address table, entries	2K
Dimensions W x D x H, mm	100 x 85 x 30
Weight, g	227
IP classification	IP30
Bandwidth, Gbit/s	10
Power over Ethernet (PoE) Support	No
Switch type	Unmanaged
Operating temperature range (T-T), �C	- 40 - 75
Auto MDI/MDI-X	Yes
Jumbo Frames support	9216 bytes
Networking standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Ethernet LAN data transfer rates, Mbit/s	10/100/1000
Description
Description	TSW110 L2 UNMANAGED SWITCH TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product ? TSW100. Possible to power up through the first ETH port. It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. It offers a wide range of supported power supply voltages (9-30 V). Ideal for professional high bandwidth applications to provide reliable data connection.

Description	TELTONIKA NETWORKS TSW110 Industrial Unm
VatType	VAT
Weight	0.380000000
Height	75.000000000
Width	150.000000000
Length	175.000000000
Description
Description	TELTONIKA NETWORKS TSW110 Industrial Unmanaged Passive PoE/Switch

Description	TELTONIKA NETWORKS TSW110 Industrial Unm
VatType	VAT
Weight	0.380000000
Height	75.000000000
Width	150.000000000
Length	175.000000000
Description
Description	TELTONIKA NETWORKS TSW110 Industrial Unmanaged Passive PoE/Switch

Gross depth (mm)	175, 175
Gross height (mm)	150.00, 150.00
Gross weight	0.287
Gross width (mm)	70, 70
Net weight	0.205
Packing quantity	1.00, 1.00
Paper/Pasteboard	82, 82
Tare weight (kg)	0.082, 0.082
Volume (m3)	0.0018375, 0.0018375
Embeeded battery	No, No
WEEE tax	Yes, Yes
WEE classification	CL109:6:2017-04-01, CL109:6:2017-04-01
Combo SFP ports quantity	0
SFP ports quantity	0
Switch type	Unmanaged
Gigabit Ethernet (copper) ports quantity	5
Warranty	12
Producer product name	TSW110
Producer product family	Switch
POE	PoE passive
Predominant port type	1 Gbps (RJ-45)
10 Gbps (RJ-45) ports quantity	0
Combo ports quantity	0
PoE+ ports quantity	0
SFP+ ports quantity	0
Operating relative humidity (H-H)	10 % to 90 % non-condensing
LED indicators	Yes
Housing material	Aluminium
Operating temperature (T-T)	-40 C to 75 C
Data transfer rate (max)	10 Gbps
Jumbo frames	9216 bytes
Passive PoE ports quantity	Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Input voltage	9-30 VDC (reverse polarity protection, voltage surge/transient protection)
Buffer size	128
Producer	Teltonika, Teltonika
Palette Qty	470, 470

Description
	5P Teltonika TSW110 Industrial GSwitch

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

RJ-45 port	5
Properties	RJ-45

Switch class	Unmanaged
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	5
Console port	No
Throughput	10 (Gigabity na sek.)
Packet buffer	128 (Kilobajt)
MAC address table size	2000
Support for Jumbo frames	No
Stackability	No
Supported protocols and standards	IEEE 802.3 IEEE 802.3u IEEE 802.3az
Chassis type	Rack
Chassis type	Desktop
Fan	No
Power supply	External
Power consumption	1.8 (Watt)
Environment requirements	Temperatura robocza: -40°C do 75°C Wilgotność podczas pracy: od 10% do 90% bez kondensacji
Accessories included	TSW110 Zasilacz 9 W Skrócona instrukcja obsługi QSG
Power supply	Gniazdo 4-pinowe, 9-30 VDC
Dimensions	100 x 30 x 85 mm
Weight	227 (gram)
Width	150
Height	175
Depth	70
Weight	387
Description
Description	Przełącznik TSW110 TSW110 to niezarządzalny przełącznik warstwy 2, który jest uproszczoną wersją naszego wcześniejszego produktu - TSW100. Możliwość zasilania przez pierwszy port LAN. Posiada pięć portów Ethernet 10/100/1000 Mbps dla ekonomicznego rozwiązania o wysokiej przepustowości. Oferuje szeroki zakres obsługiwanych napięć zasilania (9-30 V). Idealny do profesjonalnych aplikacji o wysokiej przepustowości, zapewniający niezawodne połączenie danych.

Description	TELTONIKA IOT SWITCH TSW110
CountryofOrigin	CHINA
TariffHeading	85176200
PictureLocation	https://www2.f9baltic.com/productimages/big/TSW110000000.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/TSW110000000.jpg
AdditionalPictures	TSW110000000_5.jpg TSW110000000_4.jpg TSW110000000_3.jpg TSW110000000_2.jpg
Weight	0.400000
Height	150.000000
Length	150.000000
Width	170.000000
BoxSize	10
PalletSize	0
Ethernet LAN (RJ-45) ports quantity	5
Buffer size, KB	128
Ports quantity	5
MAC address table, entries	2K
Dimensions W x D x H, mm	100 x 85 x 30
Weight, g	227
IP classification	IP30
Bandwidth, Gbit/s	10
Power over Ethernet (PoE) Support	No
Switch type	Unmanaged
Operating temperature range (T-T), �C	- 40 - 75
Auto MDI/MDI-X	Yes
Jumbo Frames support	9216 bytes
Networking standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Ethernet LAN data transfer rates, Mbit/s	10/100/1000
Description
Description	TSW110 L2 UNMANAGED SWITCH TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product ? TSW100. Possible to power up through the first ETH port. It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. It offers a wide range of supported power supply voltages (9-30 V). Ideal for professional high bandwidth applications to provide reliable data connection.

Description	TELTONIKA NETWORKS TSW110 Industrial Unm
VatType	VAT
Weight	0.380000000
Height	75.000000000
Width	150.000000000
Length	175.000000000
Description
Description	TELTONIKA NETWORKS TSW110 Industrial Unmanaged Passive PoE/Switch

Description	TELTONIKA NETWORKS TSW110 Industrial Unm
VatType	VAT
Weight	0.380000000
Height	75.000000000
Width	150.000000000
Length	175.000000000
Description
Description	TELTONIKA NETWORKS TSW110 Industrial Unmanaged Passive PoE/Switch

Gross depth (mm)	175, 175
Gross height (mm)	150.00, 150.00
Gross weight	0.287
Gross width (mm)	70, 70
Net weight	0.205
Packing quantity	1.00, 1.00
Paper/Pasteboard	82, 82
Tare weight (kg)	0.082, 0.082
Volume (m3)	0.0018375, 0.0018375
Embeeded battery	No, No
WEEE tax	Yes, Yes
WEE classification	CL109:6:2017-04-01, CL109:6:2017-04-01
Combo SFP ports quantity	0
SFP ports quantity	0
Switch type	Unmanaged
Gigabit Ethernet (copper) ports quantity	5
Warranty	12
Producer product name	TSW110
Producer product family	Switch
POE	PoE passive
Predominant port type	1 Gbps (RJ-45)
10 Gbps (RJ-45) ports quantity	0
Combo ports quantity	0
PoE+ ports quantity	0
SFP+ ports quantity	0
Operating relative humidity (H-H)	10 % to 90 % non-condensing
LED indicators	Yes
Housing material	Aluminium
Operating temperature (T-T)	-40 C to 75 C
Data transfer rate (max)	10 Gbps
Jumbo frames	9216 bytes
Passive PoE ports quantity	Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Input voltage	9-30 VDC (reverse polarity protection, voltage surge/transient protection)
Buffer size	128
Producer	Teltonika, Teltonika
Palette Qty	470, 470

Description
	5P Teltonika TSW110 Industrial GSwitch
