PrevEaton 9PX 1.5kVA uninterrup...

NextEaton 9PX 1500i RT2U Netpac...

Производитель: EATON

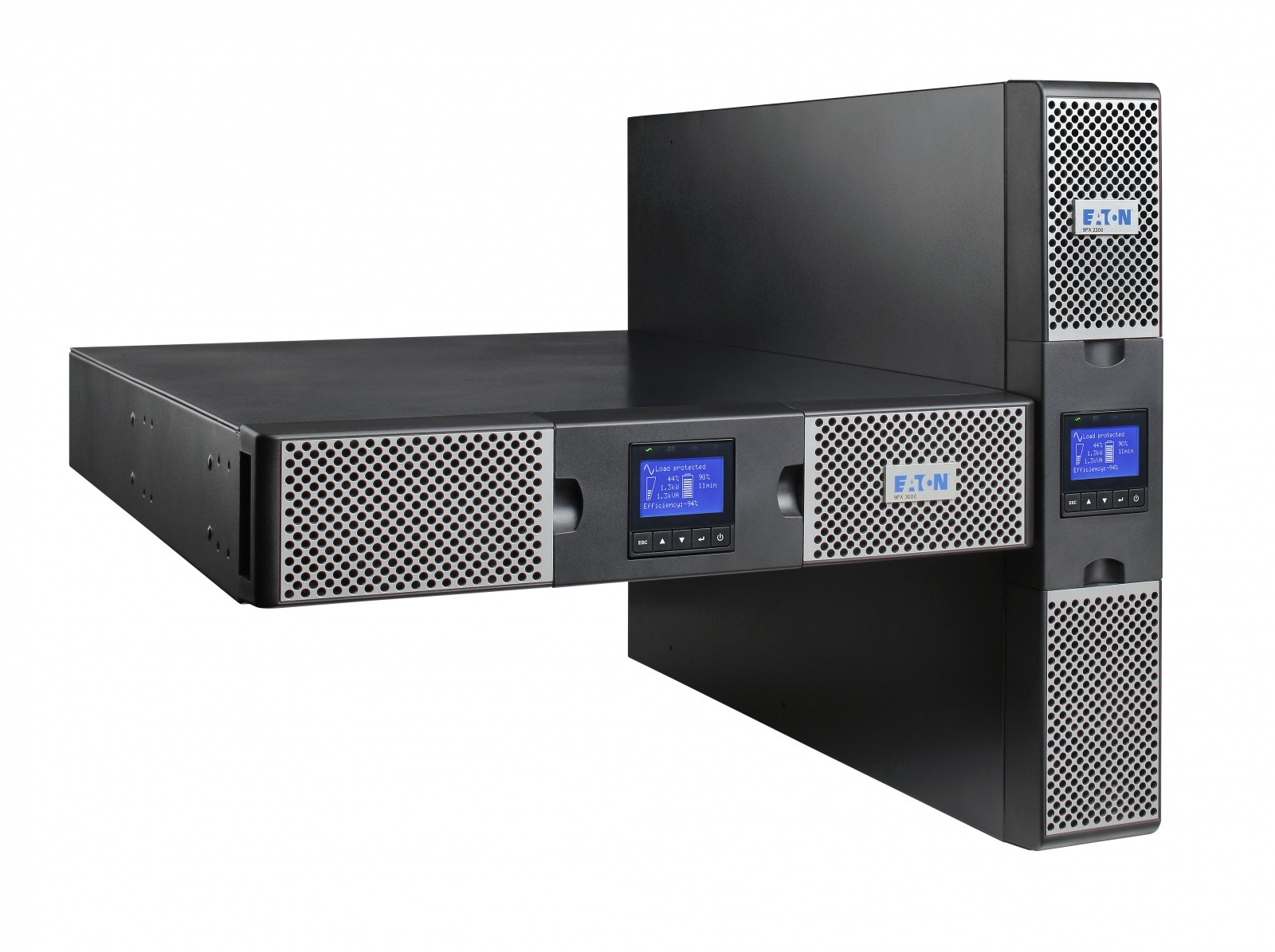

Eaton 9PX 1000i RT2U Netpack

€1660,30 с налогом

Артикул: ST02209009

Код производителя: 9PX1000IRTN

Сайт производителя

гарантия: 24 месяцы

Stock *

Склад	Доставка	Наличие	Цена
DE	5 - 10 дня	1	€1660,30 с налогом
PL	8 - 15 дня	1	€2042,21 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

UPS стабилизаторы напряжения	1000
гнездo (RS232)	да
Тип	Double Conversion Online
Выходная мощность	1000
гнездo (USB)	да
гнездo (IEC320)	да

Apparent power	1000 VA
Active power	1000 (Watt)
UPS Architecture	on-line double conversion
Number of phases input	1 (230V)
Chassis type	Tower
Input power ports	IEC-C14
Output power ports	8 x IEC-C13
I/O connectors	1 x RS-232 (COM)
I/O connectors	1 x USB (Type B)
Color	Black
Dimensions	86.5 x 440 x 450 mm
Weight	17.4 (kilogram)
Video
Video
Width	550
Height	590
Depth	240
Weight	25200

UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	1000 W
Waveform	Pure sine
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Input frequency	40/70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Number of input phases	1
Efficiency	91.5%
Power factor	1
Noise level	35 dB
Power protection features	Battery discharge
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
Serial interface	Yes
Serial interface type	RS-232
RS-232 ports	1
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	6 min
Typical backup time at half load	16.5 min
Hot-swap battery	Yes
Automatic battery test	Yes
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Display type	LCD
LED indicators	Yes
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Certification	IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Width	440 mm
Depth	450 mm
Height	86.5 mm
Weight	17.4 kg
Rack mount kit	Yes
Management card included	Yes
Bundled software	Intelligent Power Software suite
Harmonized System (HS) code	85078000
Nominal output voltage	230 V
Nominal input voltage	230 V
Description
Description	Eaton 9PX 1kVA. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 6 min, Typical backup time at half load: 16.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 450 mm, Height: 86.5 mm

Description
	1000 Watts \| 1000 VA \| Topology OnLine DoubleConvertion \| Input ports Single, IEC320 C14 \| Output power connector type IEC 320 C13 \| 1xRS232 \| 1xUSB \| Desktop/pedestal \| Rack

Description	EATON 9PX 1000i RT2U Netpack
VatType	VAT
Weight	23.580000000
Height	240.000000000
Width	550.000000000
Length	590.000000000
Description
Description	EATON 9PX 1000i 1000VA/1000W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 9/20min Voll/Halblast

ShortDesc	Eaton 9PX 1000i RT2U Netpack
UPS Power (VA)	1000 VA
UPS Power (W)	1000 W
Runtime (min)	16/6
Input Voltage (V)	176-276V without derating (up to 100-276V with derating)
Output Voltage (V)	200/208/220/230/240V
Input Frequency (Hz)	40-70 Hz
Output Frequency (Hz)	50/60 Hz autoselect, frequency converter mode
Input Connections	IEC-320-C14
Output Connections	8x IEC-320-C13
Waveform Type	On-line double conversion with Power Factor Correction (PFC) system
Recharge time (hours)	-
Battery Type	-
Topology	Line interactive
USB	Yes
SmartSlot	-
RJ-45	-
Other Connections	Network management card USB port Serial RS232 port Mini-terminal block for remote ON/OFF Mini-terminal block for Remote Power Off Mini-terminal block for Output relay
Control Panel	Multilingual graphical LCD display
Alarm	-
Color	-
Form Factor	Rack Tower
Package Contents	-
Width	440 mm
Depth	450 mm
Height	86.5 mm
Net Weight	17.400 kg
Gross Weight	25.200 kg

Description	EATON 9PX 1000i RT2U Netpack
VatType	VAT
Weight	23.580000000
Height	240.000000000
Width	550.000000000
Length	590.000000000
Description
Description	EATON 9PX 1000i 1000VA/1000W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 9/20min Voll/Halblast

Характеристики

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

UPS стабилизаторы напряжения	1000
гнездo (RS232)	да
Тип	Double Conversion Online
Выходная мощность	1000
гнездo (USB)	да
гнездo (IEC320)	да

Apparent power	1000 VA
Active power	1000 (Watt)
UPS Architecture	on-line double conversion
Number of phases input	1 (230V)
Chassis type	Tower
Input power ports	IEC-C14
Output power ports	8 x IEC-C13
I/O connectors	1 x RS-232 (COM)
I/O connectors	1 x USB (Type B)
Color	Black
Dimensions	86.5 x 440 x 450 mm
Weight	17.4 (kilogram)
Video
Video
Width	550
Height	590
Depth	240
Weight	25200

UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	1000 W
Waveform	Pure sine
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Input frequency	40/70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Number of input phases	1
Efficiency	91.5%
Power factor	1
Noise level	35 dB
Power protection features	Battery discharge
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
Serial interface	Yes
Serial interface type	RS-232
RS-232 ports	1
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	6 min
Typical backup time at half load	16.5 min
Hot-swap battery	Yes
Automatic battery test	Yes
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Display type	LCD
LED indicators	Yes
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Certification	IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Width	440 mm
Depth	450 mm
Height	86.5 mm
Weight	17.4 kg
Rack mount kit	Yes
Management card included	Yes
Bundled software	Intelligent Power Software suite
Harmonized System (HS) code	85078000
Nominal output voltage	230 V
Nominal input voltage	230 V
Description
Description	Eaton 9PX 1kVA. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 6 min, Typical backup time at half load: 16.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 450 mm, Height: 86.5 mm

Description
	1000 Watts \| 1000 VA \| Topology OnLine DoubleConvertion \| Input ports Single, IEC320 C14 \| Output power connector type IEC 320 C13 \| 1xRS232 \| 1xUSB \| Desktop/pedestal \| Rack

Description	EATON 9PX 1000i RT2U Netpack
VatType	VAT
Weight	23.580000000
Height	240.000000000
Width	550.000000000
Length	590.000000000
Description
Description	EATON 9PX 1000i 1000VA/1000W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 9/20min Voll/Halblast

ShortDesc	Eaton 9PX 1000i RT2U Netpack
UPS Power (VA)	1000 VA
UPS Power (W)	1000 W
Runtime (min)	16/6
Input Voltage (V)	176-276V without derating (up to 100-276V with derating)
Output Voltage (V)	200/208/220/230/240V
Input Frequency (Hz)	40-70 Hz
Output Frequency (Hz)	50/60 Hz autoselect, frequency converter mode
Input Connections	IEC-320-C14
Output Connections	8x IEC-320-C13
Waveform Type	On-line double conversion with Power Factor Correction (PFC) system
Recharge time (hours)	-
Battery Type	-
Topology	Line interactive
USB	Yes
SmartSlot	-
RJ-45	-
Other Connections	Network management card USB port Serial RS232 port Mini-terminal block for remote ON/OFF Mini-terminal block for Remote Power Off Mini-terminal block for Output relay
Control Panel	Multilingual graphical LCD display
Alarm	-
Color	-
Form Factor	Rack Tower
Package Contents	-
Width	440 mm
Depth	450 mm
Height	86.5 mm
Net Weight	17.400 kg
Gross Weight	25.200 kg

Description	EATON 9PX 1000i RT2U Netpack
VatType	VAT
Weight	23.580000000
Height	240.000000000
Width	550.000000000
Length	590.000000000
Description
Description	EATON 9PX 1000i 1000VA/1000W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 9/20min Voll/Halblast
