Производитель: EATON

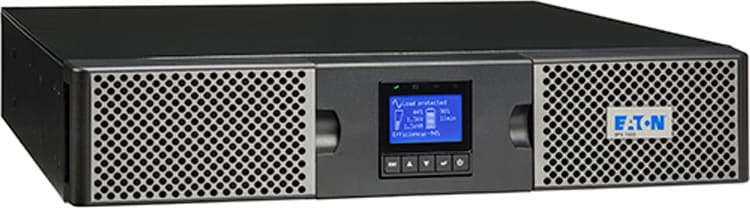

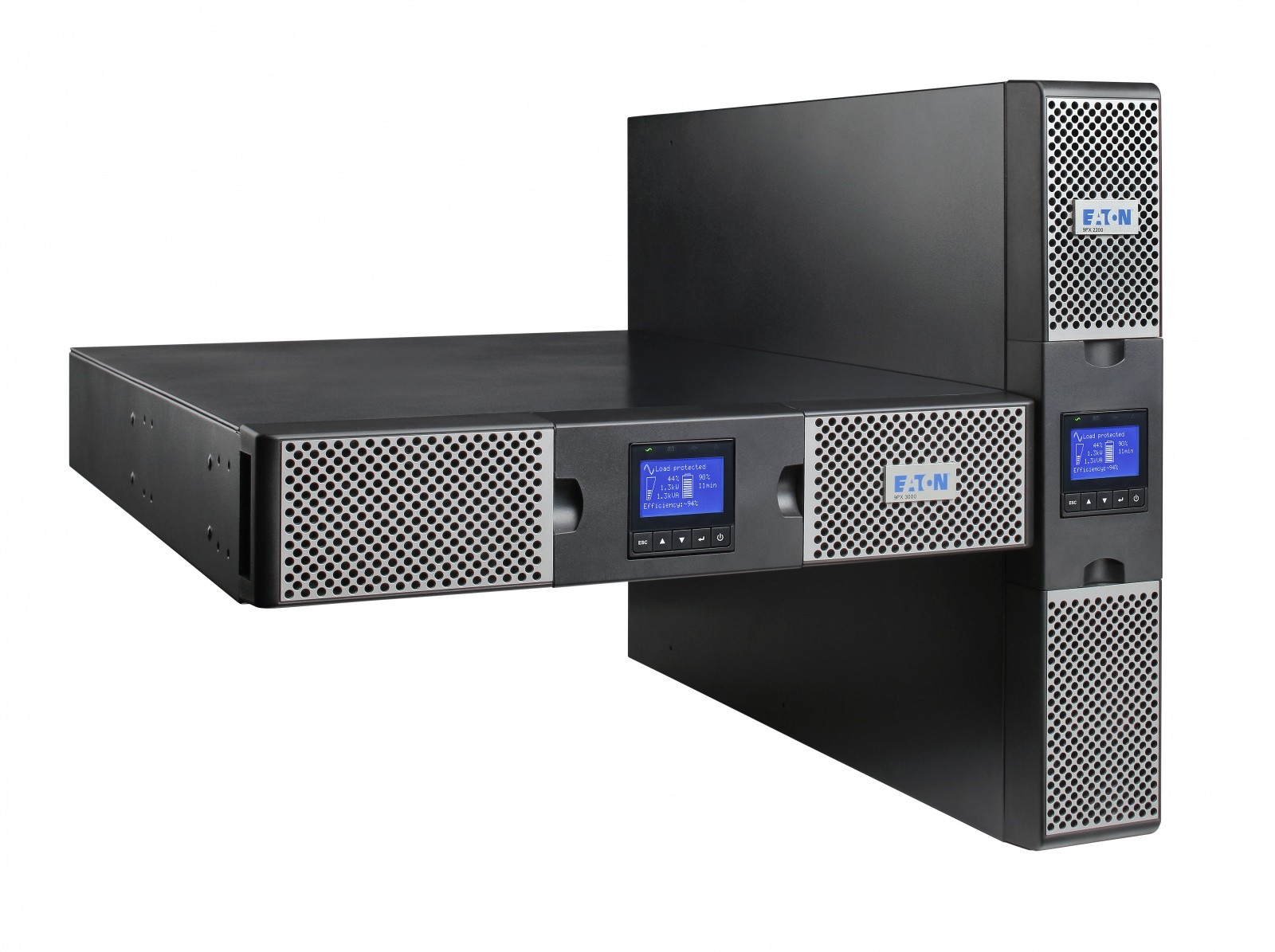

Eaton 9PX 1500i RT2U Netpack

€1876,90 с налогом

Артикул: ST02209372

Код производителя: 9PX1500IRTN

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
LV	2 - 5 дня	2	€1876,90 с налогом
DE	5 - 10 дня	3	€1876,90 с налогом
LT	3 - 5 дня	10	€2015,64 с налогом
PL	8 - 15 дня	1	€2162,34 с налогом
PL	9 - 12 дня	2	€2647,76 с налогом
LT	5 - 15 дня	5	€2690,07 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

UPS стабилизаторы напряжения	1500
гнездo (RS232)	да
Тип	Double Conversion Online
гнездo (USB)	да
гнездo (IEC320)	да

Apparent power	1500 VA
Active power	1500 (Watt)
UPS Architecture	on-line double conversion
Number of phases input	1 (230V)
Chassis type	Tower
Input power ports	IEC-C14
Output power ports	8 x IEC-C13
I/O connectors	1 x RS-232 (COM)
I/O connectors	1 x USB (Type B)
Color	Black
Dimensions	86.5 x 440 x 450 mm
Weight	17.4 (kilogram)
Video
Video
Width	550
Height	590
Depth	240
Weight	25200

UPS topology	Double-conversion (Online)
Output power capacity	1.5 kVA
Output power	1500 W
Waveform	Pure sine
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Input frequency	40/70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Number of input phases	1
Efficiency	92.5%
Power factor	1
Noise level	35 dB
Power protection features	Battery discharge
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
Serial interface	Yes
Serial interface type	RS-232
RS-232 ports	1
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	5 min
Typical backup time at half load	14 min
Hot-swap battery	Yes
Automatic battery test	Yes
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Display type	LCD
LED indicators	Yes
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Certification	IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Width	440 mm
Depth	450 mm
Height	86.5 mm
Weight	18.9 kg
Rack mount kit	Yes
Management card included	Yes
Bundled software	Intelligent Power Software suite
Harmonized System (HS) code	85078000
Nominal output voltage	230 V
Nominal input voltage	230 V
Description
Description	Eaton 9PX 1.5kVA. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min, Typical backup time at half load: 14 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 450 mm, Height: 86.5 mm

Description	EATON 9PX 1500i RT2U Netpack
VatType	VAT
Weight	25.320000000
Height	260.000000000
Width	555.000000000
Length	690.000000000
Description
Description	EATON 9PX 1500i 1500VA/1500W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 7/19min Voll/Halblast

ShortDesc	Eaton 9PX 1500i RT2U Netpack
UPS Power (VA)	1500 VA
UPS Power (W)	1500 W
Runtime (min)	14/5
Input Voltage (V)	176-276V without derating (up to 100-276V with derating)
Output Voltage (V)	200-240V
Input Frequency (Hz)	50/60 Hz autoselect
Output Frequency (Hz)	50/60 Hz autoselect, frequency converter as standard
Input Connections	IEC-320-C14
Output Connections	(8) IEC-320-C13
Waveform Type	On-line double conversion with Power Factor Correction (PFC) system
Recharge time (hours)	-
Battery Type	-
Topology	Line interactive
USB	Yes
SmartSlot	-
RJ-45	-
Other Connections	USB port Serial RS232 port
Control Panel	Multilingual graphical LCD display
Alarm	-
Color	-
Form Factor	Rack Tower
Package Contents	-
Width	440 mm
Depth	450 mm
Height	86.5 mm
Net Weight	18.900 Kg
Gross Weight	25.200 kg

Description	EATON 9PX 1500i RT2U Netpack
VatType	VAT
Weight	25.320000000
Height	260.000000000
Width	555.000000000
Length	690.000000000
Description
Description	EATON 9PX 1500i 1500VA/1500W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 7/19min Voll/Halblast

Gross depth (mm)	585.00
Gross height (mm)	230.00
Gross weight	25.3
Gross width (mm)	545.00
Net weight	24.8
Packing quantity	1.00
Tare weight (kg)	0.5
Volume (m3)	0.07
Embeeded battery	Yes
WEEE tax	Yes
Producer	Eaton
Paper/Pasteboard	450
Plastic (No PET)	50
TI weight (kg)	16
WEE classification	CL109:5:2017-04-01
Composition of battery	CL127:KT:2016-12-09
Classification of battery	CL126:NE:2016-12-09
Type of battery	Accumulator
Palette Qty	24
UPS topology	On line
Capacity	1500
Producer product name	9PX 1500i RT2U Netpack
Producer product family	UPS
Capacity	1500
